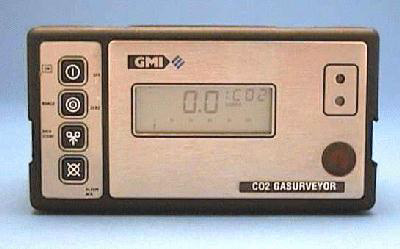

G.M.I. Co2 Surveyor

The new CO2 Gasurveyor is a state of the art portable instrument, designed to detect Carbon Dioxide in Nitrogen and Air. The CO2 Gasurveyor has been developed from the highly successful and reliable Gasurveyor series of instruments, currently used by customers worldwide in a range of demanding environments.

Easy to operate, the instrument has a wide range of applications in a number of different fields.

The instrument utilises an infrared sensing system for the detection of CO2. Critical parts of the IR Sensing System are the source and detectors, which have been specifically selected to minimise drift and eliminate the need for consumable parts for the lifetime of the instrument. In addition the design of the overall IR System is such that interference from other gases e.g. Carbon Monoxide and Sulphur Dioxide, is virtually eliminated.

The instrument is operated via four push buttons, which controls all the instruments functions including on/off, range, zero, data logging and alarm acknowledgements. The CO2 Gasurveyor has a digital LCD display, which is automatically backlit in poor light conditions. The gas sample is drawn through the unit by an integral electric pump which if required enables samples to be taken remotely without entering a potentially dangerous area.

The instrument casing is rugged and durable and the CO2 Gasurveyor is sealed to IP54 standards and is suitable for outdoor use.

The CO2 Gasurveyor has one alarm per range, which can be set at a level specific to user requirements, and company recommended safety procedures
